Why Choose OUR Instruments
High Accuracy and Bidirectional Flow Measurement

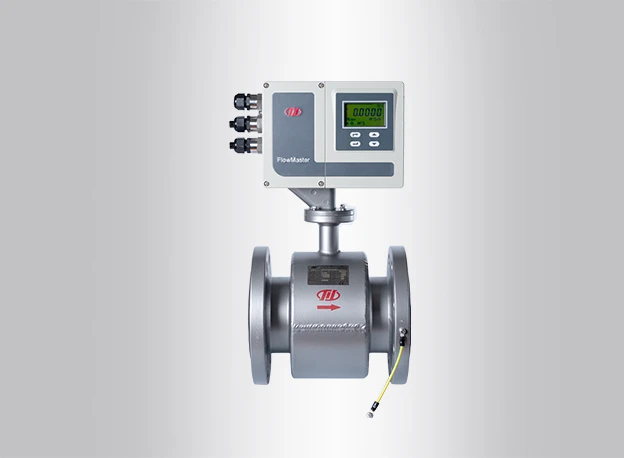

With measurement accuracy of up to ±0.2% of the reading, the Industrial MFC Electromagnetic Flow Meter can measure both forward and reverse flow.
01
Flexible Installation Requirements
The meter requires a straight pipe length of 5 times the pipe diameter upstream and 2 times the pipe diameter downstream. This helps reduce the straight-pipe length required for installation.
02
Low Power Consumption
With power consumption below 20 VA, the flow meter has low power requirements during operation.
03
Easy Converter Replacement
The converter features good interchangeability. When a compatible converter is replaced, the specified measurement accuracy can be achieved without recalibrating the meter under actual flow conditions, provided the applicable requirements are met.
04
Automatic Empty-Pipe Detection and Alarm
The flow meter automatically detects when the pipe is empty, sets the flow reading to zero, and triggers an alarm. This helps prevent abnormal readings caused by an empty pipe and reduces the risk of operating errors.
05
Specification
Electromagnetic Flow Meter -MFC |
|
| Accuracy Class | 0.5 |
| Nominal Diameter (mm) | DN2.5 ~ DN1200 |
| Flange | GB/T9119 J IS B2220 ASME/ANSI B16.5 HG/T20592 |
| Pressure Rating | Please refer to the selection table for details. |
| Liner Material |
ETFE, PTFE, PFA, F46, Polyurethane Rubber, Natural Rubber, Chloroprene Rubber |
| Electrical Conductivity | ≥5μs/cm |
| Electrode Material | 316L Stainless Steel, Hastelloy Alloy, Titanium, Tantalum, Platinum-Titanium Alloy, Tungsten Carbide Coating, Platinum |
| Protection Rating | IP65 |
|
Medium Temperature |
-25℃ ~ 180℃ |
| Ambient Temperature | -40℃ ~ 65℃ |
| Ambient Temperature Effect | < ±0.25%/10℃ |
| Repeatability and Reproducibility | ≤ ±0.16% |
| Analog Output Error | ≤ ±0.02mA |
| Flow Velocity Range | ≤ 10m/s |

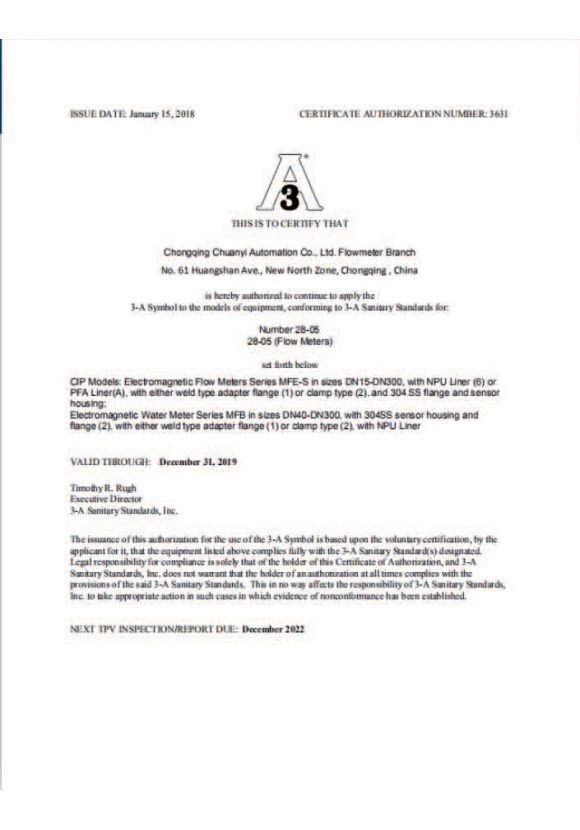

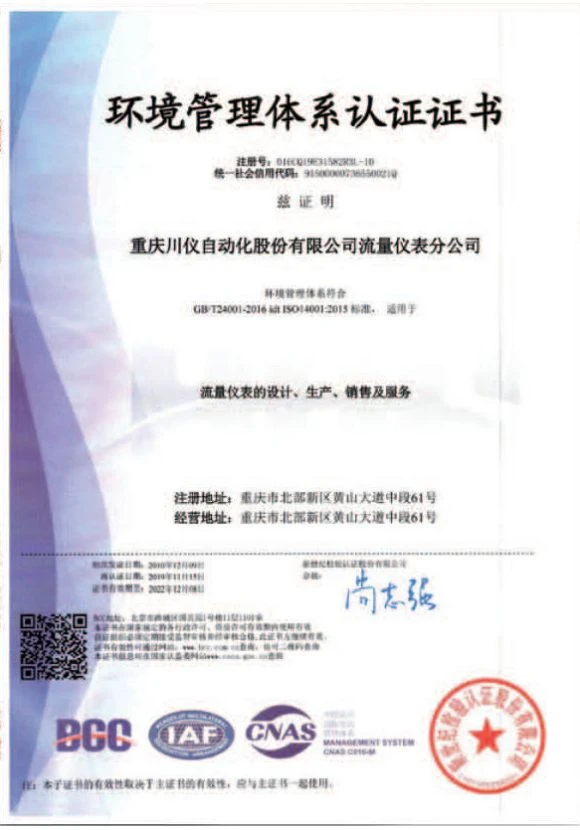

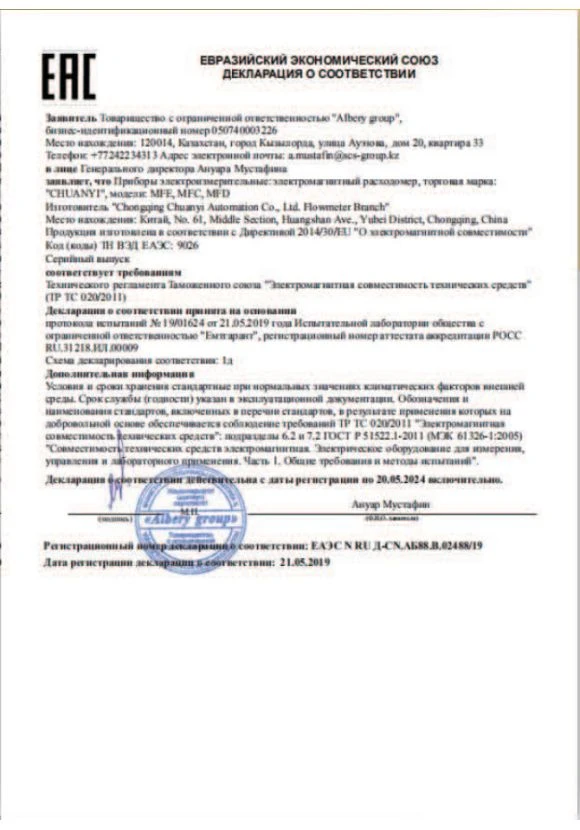

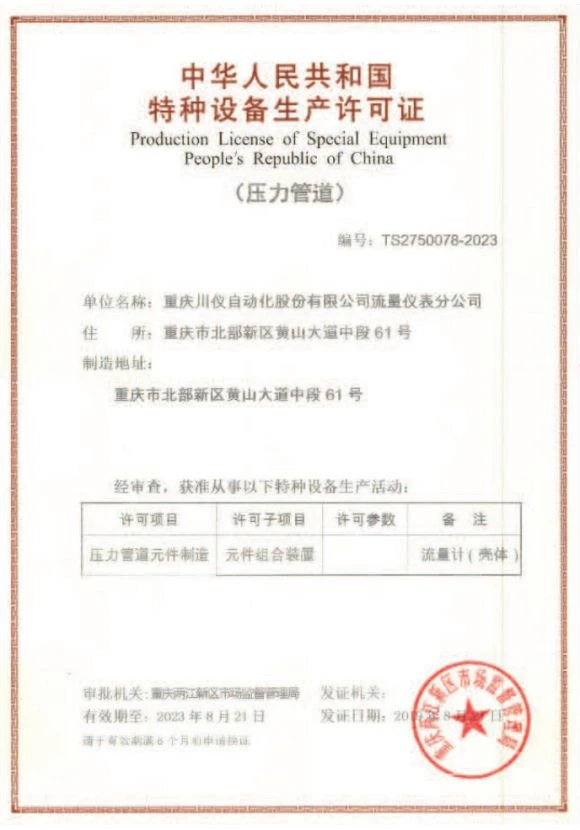

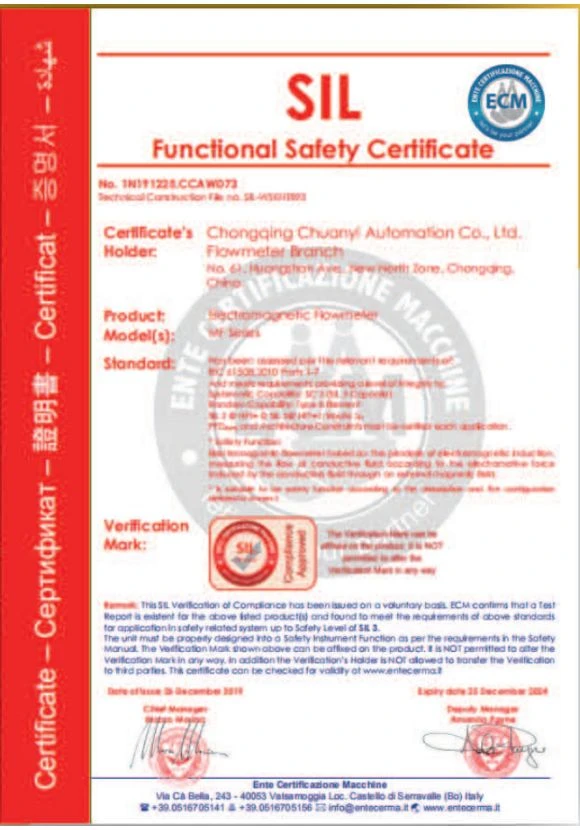

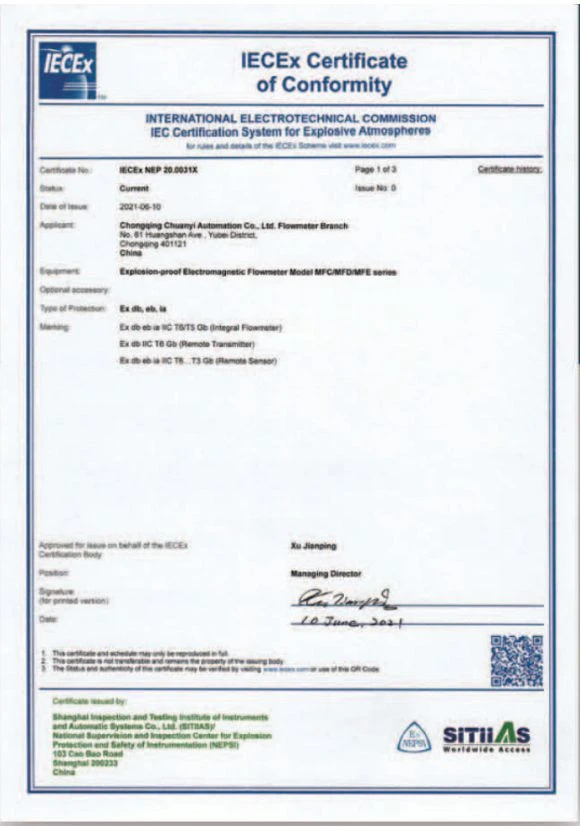

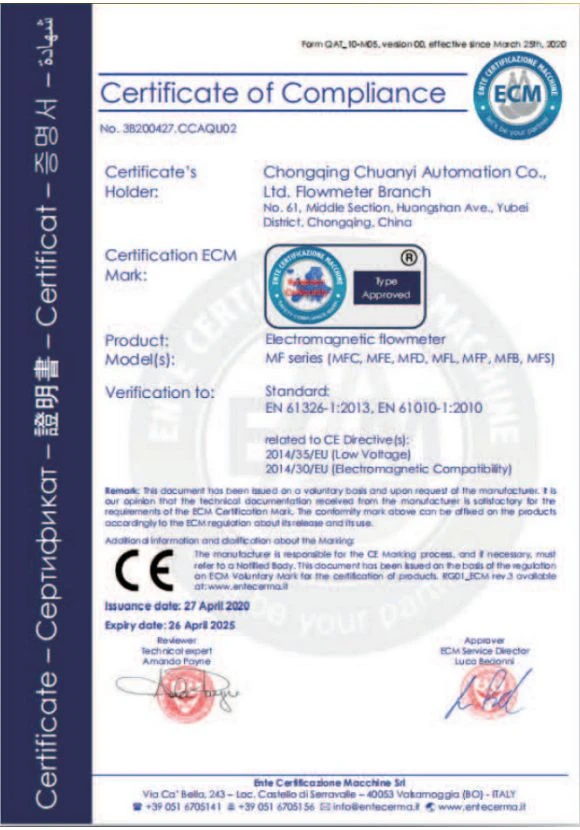

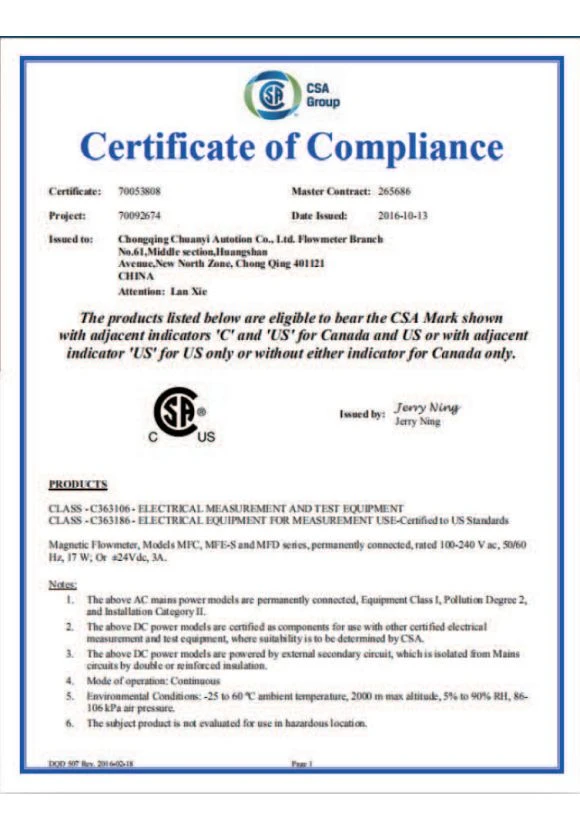

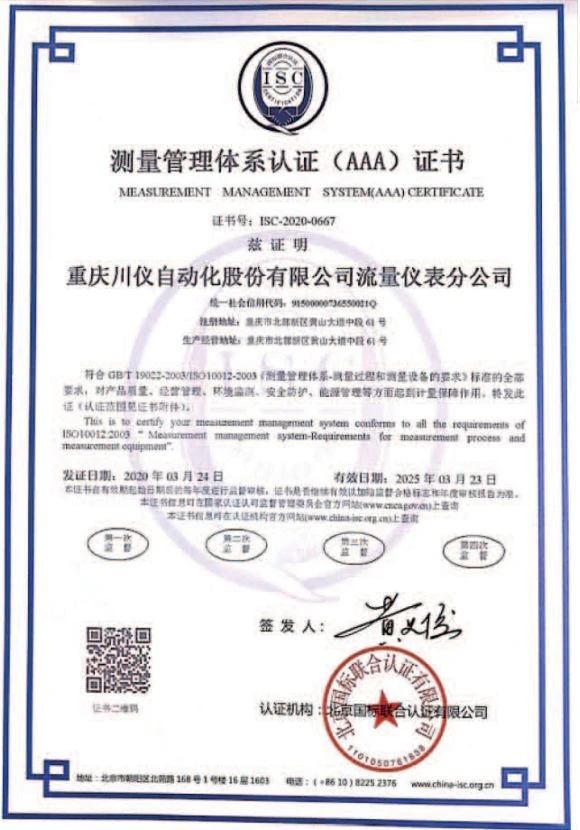

Certificate
