When operating at high capacity, excessive cake buildup and blocked filter media can reduce discharge efficiency. Fine particles may clog the filter cloth, causing poor cake release, material accumulation, and potential overflow issues.

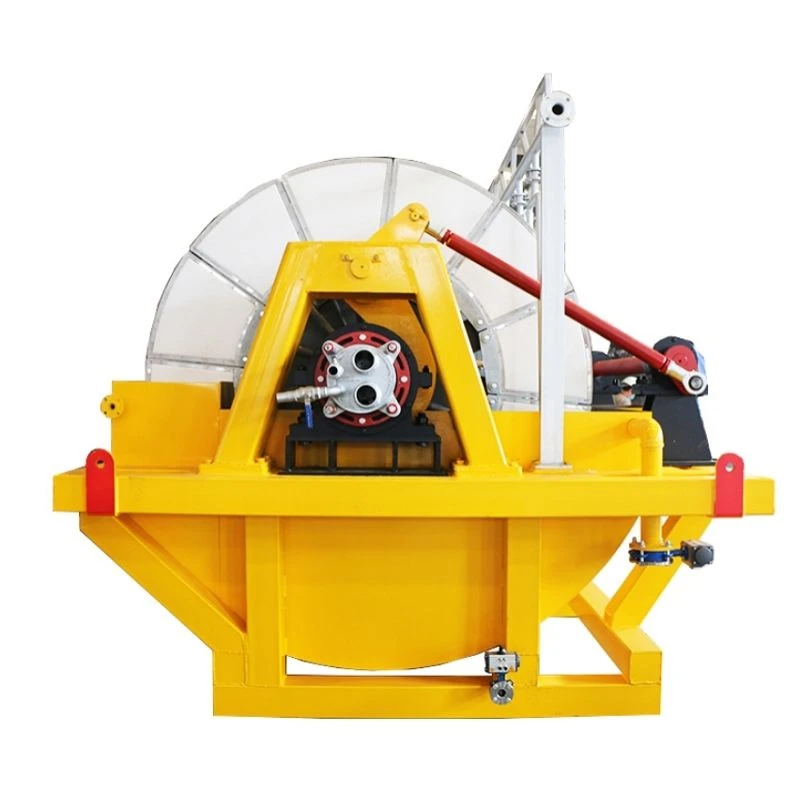

Rotary Disc Filter are designed to maintain smooth operation under high-load conditions. Overload-Protected Auto-Scraper Feedback Loop monitors cake thickness and adjusts rotation speed to improve discharge efficiency. Combined with an internal compressed air blow-off system and low-friction discharge liners, the equipment ensures effective cake release and prevents material buildup.
China's First Disc Vacuum Filter for Coal Mining
Advanced Solution for Coal Slurry Dewatering
We developed an early-generation disc vacuum filtration solution tailored for coal processing applications. Designed for fine coal recovery and slurry dewatering, the system provides continuous operation, efficient solid-liquid separation, and stable performance under challenging coal preparation conditions.
ZY Series Vacuum Disc Filter Specification
|
Specfication |
Filtration Area per Disc (m²) |
Disc Qty |
Disc Diameter(mm) |
L x W x H (mm) |
Weight (t) |
Operating Power(kw) |
Violume of Tank(m³) |
|
ZY GP5/1P-5 |
5 |
1 |
2300 |
3400x3100x2640 |
2.3 |
18.7 |
1.5 |
|
ZY GP10/2P-5 |
10 |
2 |
2300 |
3750x3100x2640 |
2.8 |
23.7 |
2.0 |
|
ZY GP15/3P-5 |
15 |
3 |
2300 |
4100x3100x2640 |
3.2 |
35.2 |
2.6 |
|
ZY GP20/4P-5 |
20 |
4 |
2300 |
4450x3100x2640 |
4.0 |
36.2 |
3.2 |
|
ZY GP25/5P-5 |
25 |
5 |
2300 |
4800x3100x2640 |
4.5 |
36.2 |
3.7 |
|
ZY GP30/6P-5 |
30 |
6 |
2300 |
5150x3100x2640 |
5.2 |
44.0 |
4.3 |
|
ZY GP35/7P-5 |
35 |
7 |
2300 |
5500x3100x2640 |
5.8 |
53.5 |
4.8 |
|
ZY GP40/8P-5 |
40 |
8 |
2300 |
5850x3100x2640 |
6.5 |
63.5 |
5.4 |
|
ZY GP45/9P-5 |
45 |
9 |
2300 |
6150x3100x2640 |
7.2 |
63.5 |
5.9 |
|
ZY GP50/10P-5 |
50 |
10 |
2300 |
6500x3100x2640 |
8.0 |
64.5 |
6.5 |
|
ZY GP60/12P-5 |
60 |
12 |
2300 |
7000x3100x2680 |
13.0 |
88 |
7.6 |
|
ZY GP80/16P-5 |
80 |
16 |
2300 |
8400x3100x2680 |
14.5 |
108.5 |
9.9 |
|
ZY GP100/20P-5 |
100 |
20 |
2300 |
9800x3100x2680 |
15.8 |
128.5 |
12 |
|
ZY GP120/24P-5 |
120 |
24 |
2300 |
11200x3100x2680 |
17.2 |
154.5 |
14.3 |
