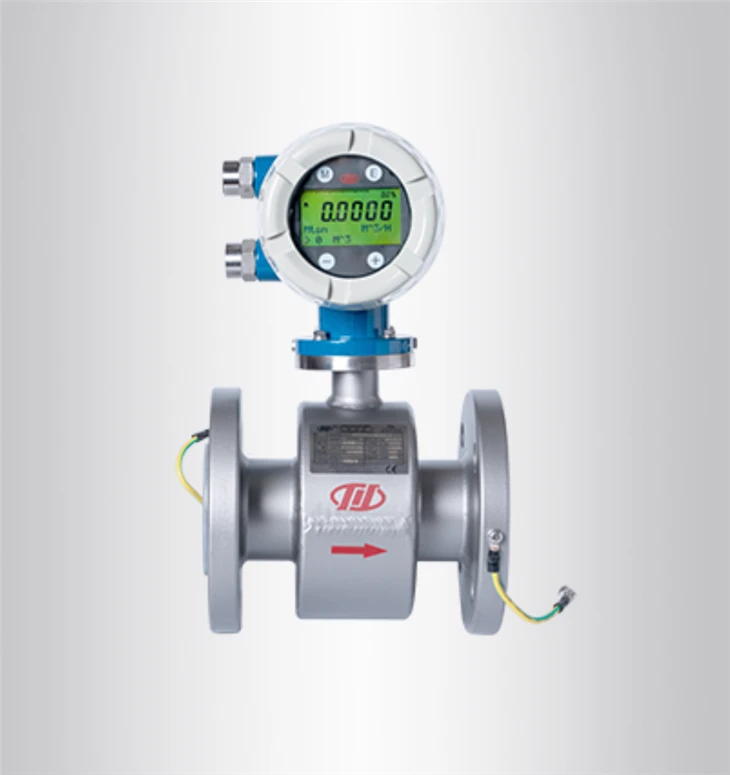

MFE-S Multifunctional Electromagnetic Flow Meter

The MFE-S multifunctional electromagnetic flow meter features a converter with specialized signal processing technology and a high-performance microprocessor. Its sensor excitation method and signal processing system help eliminate noise and other interference signals, supporting accurate and stable flow measurement.

Send Inquiry

Key Features

No Flow Obstruction or Moving Parts
The measuring tube contains no flow-obstructing components or moving parts, avoiding additional energy loss and reducing the risk of blockage.

Flexible Installation Requirements
The required straight pipe lengths are only 5D upstream and 2D downstream.

High Measurement Accuracy and Bidirectional Flow Measurement
Measurement accuracy can reach ±0.2% of the reading. The meter can measure flow in both forward and reverse directions.

Dual-Frequency Excitation for Stable Operation
The instrument uses dual-frequency excitation to minimize the influence of power-frequency interference, helping ensure stable and reliable operation.

Wide Measuring Range
The measuring range can reach a turndown ratio of 1500:1.

Specification

Electromagnetic Flow Meter -MFC
Accuracy Class	0.2-0.5
Nominal Diameter (mm)	DN2.5 ~ DN2400
Flange	GB/T9119 JIS B2220 ASME/ANSI B16.5 HG/T20592
Pressure Rating	Please refer to the selection table for details.
Liner Material	ETFE, PTFE, PFA, F46, Polyurethane Rubber, Natural Rubber, Chloroprene Rubber
Electrical Conductivity	≥5μs/cm
Electrode Material	316L Stainless Steel, Hastelloy Alloy, Titanium, Tantalum, Platinum-Titanium Alloy, Tungsten Carbide Coating, Platinum.
Protection Rating	IP65/IP67
Medium Temperature	-25°C to 180°C (Non-Explosion-Proof Type) -25°C to 130°C (Explosion-Proof Type)
Ambient Temperature	-40℃ ~ 65℃
Ambient Temperature Effect	<±0.1%/10℃,<±0.1.5%/10℃,<±0.25%/10℃
Repeatability and Reproducibility	≤±0.06%;≤±0.1%;≤±0.16%
Flow Velocity Range	≤ 10m/s
